DEEP27

CAFEC Deep Evolution!

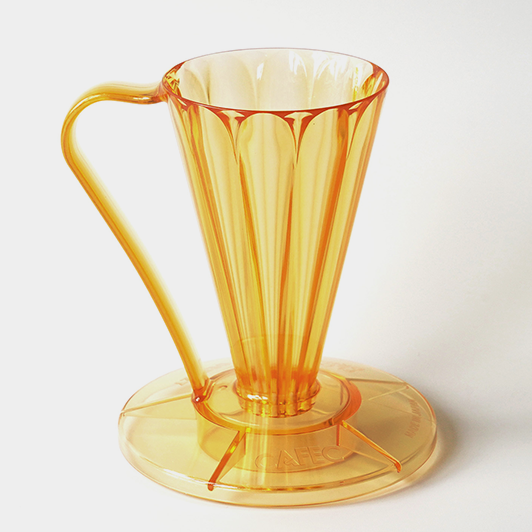

Introducing the FLOWER DRIPPER DEEP 27
for your delicious one cup.

FLOWER DRIPPER DEEP 27 is designed with CAFEC’s passion that “we want many coffee lovers to enjoy really delicious coffee at home” and our special brewing theory.

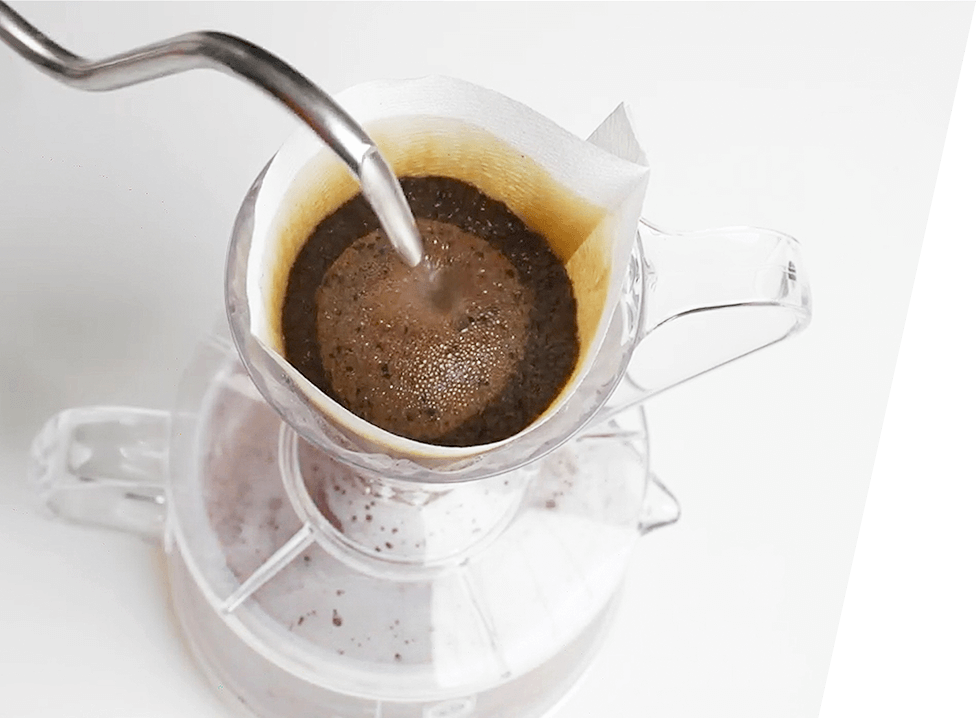

Thanks to the bottom angle of 27°, we were able to bring you FLOWER DRIPPER DEEP 27 for one cup. No more difficulty in controlling the water flow. You can just continue to pour water to the center, and enjoy your “best cup”.

Easy to brew and much more delicious coffee with DEEP 27!

DEEP 27 Development Story

DEEP 45 was a dripper developed from the idea of forming a deep filtering layer by narrowing the bottom angle to 45°. However, due to its’ angle of 45°, it was ideal for 3~7 cups and not the ideal deep filtering layer for one cup.
However, we received many passionate requests from Japan and overseas coffee lovers wanting a DEEP dripper for single cup. Therefore, in order to spread joy among our coffee lovers who enjoy single cup of coffee, we researched and developed the dripper “DEEP 27”.
We hope that you can enjoy your best cup with DEEP 27, as a reward for yourself or to share with your someone special.

Why 27˚?

After trial and error, we arrived at the ideal bottom angle for one cup.

It took about 5 years from idea development to its completion.

(1) Even a single cup of coffee grounds can form a sufficient filtering layer (the sedimentary layer of coffee powder).

(2) CAFEC’s ideal extracting speed, the speed of pouring water from the top and the speed of extracting coffee liquid from the bottom are the same.

As a result of our research, we got the ideal angle of 27° for one cup.

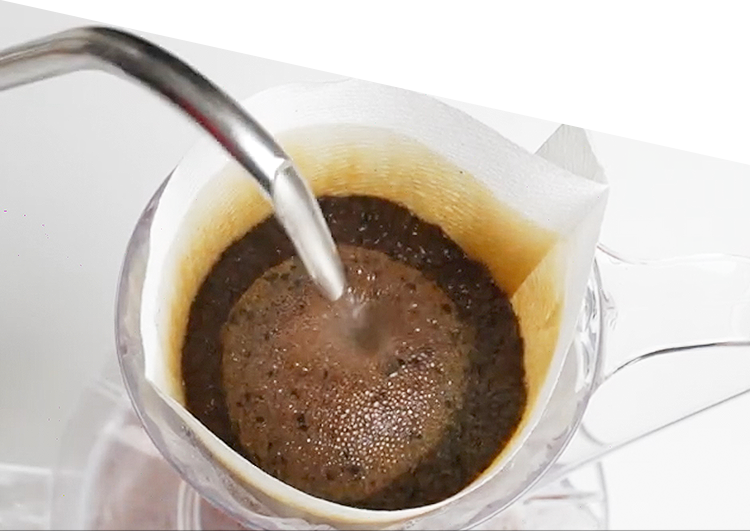

The taste of coffee brewed with DEEP 27

Brewing with DEEP 27 will bring much more richness and sweetness to your coffee. It can pull out the characteristics of each coffee and extract only the pleasant taste components.

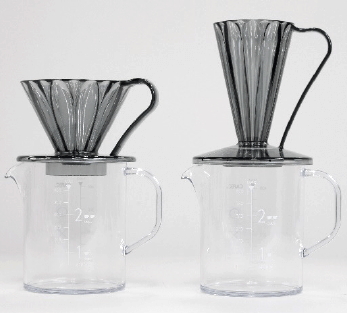

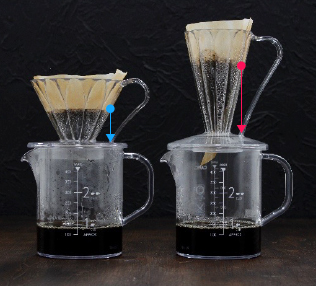

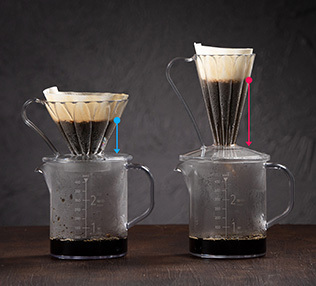

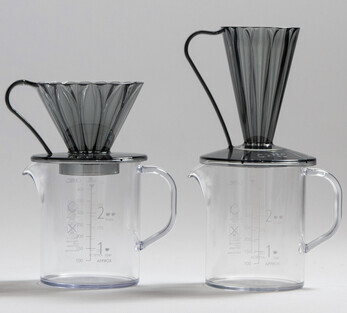

Flower dripper with a bottom angle of 60° (Cup1) and FLOWER DRIPPER DEEP 27

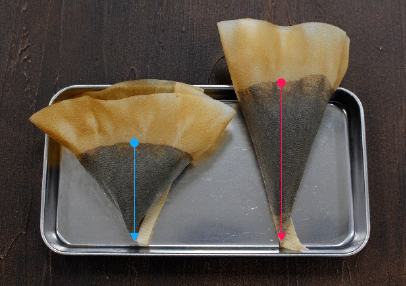

One cup of coffee grounds (12g) makes such a difference in the filtering layer.

Special structure of the dripper

In the development process of the FLOWER DRIPPER DEEP 27, we have always considered the dripper and paper balance and pursued the dripper that fulfills “the ultimate cup”. We were able to design such a special flower dripper structure, only because CAFEC has a thorough knowledge of coffee paper filter

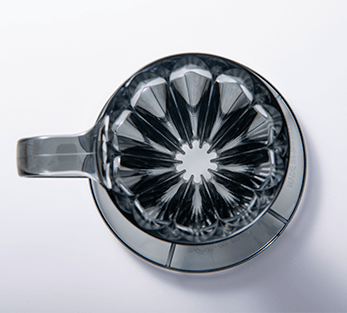

POINT.1

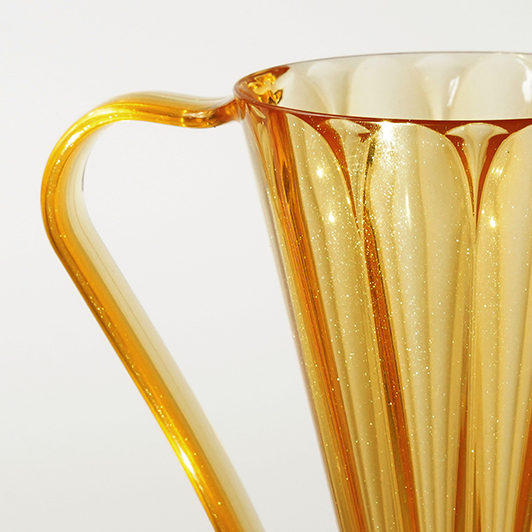

Perfect rib height

Even if the bottom angle is narrowed, the brewing speed will not drop. This is because the height of the ribs is subtly changed towards the bottom hole. This ideal rib height maintains an appropriate air layer between the paper and the dripper until the end, and generate a firm osmotic pressure inside the dripper to brew a delicious coffee.
POINT.2

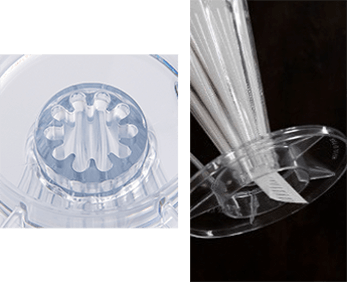

The best size for the bottom hole

Adjusting the height of the rib inevitably changes the size of the bottom hole. However, if the bottom hole is too big, the paper will protrude too much from the dripper, and it will not be able to withstand the weight of coffee powder with hot water in the latter half of the brewing, and the paper may tear easily. On the other hand, if the bottom hole is too small, the paper will not protrude much and the powder will clog near the bottom hole, and slow down the brewing speed.
DEEP 27 dripper shape can hold the strength of paper until the end and not reduce the brewing speed. After many trials, finally we reached the best size for the bottom hole.
POINT.3

The shape makes it easy to brew directly into the cup

DEEP 27 is a dripper for "the ultimate cup". Therefore, when designing, we also assumed that you will brew directly into the cup. With the curve-shaped pedestal of the dripper, we succeeded in keeping the distance between the dripper and the cup a little farther.
Therefore, the bottom tip of the paper is less likely to get soaked in coffee, preventing tearing of the paper filter and coffee powder getting into the coffee.

Abaca+ Coffee Paper Filter For “the ultimate single cup”.

This time, CAFEC introduced a dedicated paper filter molding machine together with the development of FLOWER DRIPPER DEEP 27.

Launching Abaca + DEEP 27 Coffee Paper Filter!

Even with the unique shape of the FLOWER DRIPPER DEEP 27 which has a narrow bottom angle, only dedicated paper can secure an air layer between the paper and the dripper. So that it will form and maintain a deep filtering layer and let the coffee expand smoothly.

In addition, as a feature of Abaca+ paper’s structure, the height of the crepe is set lower on both sides, and the distance between crepes are narrowed to increase the total surface area giving enough space for coffee fine powders to adhere. This feature enables a smooth water flow. The speed at which hot water is poured from the top is almost the same as the speed at which coffee liquid is extracted from the bottom. And more, by uniforming the texture of paper, you can control the speed easily and get stable taste.

Brewing together with FLOWER DRIPPER DEEP 27, you can enjoy the "ultimate cup" with much more richness and sweetness.

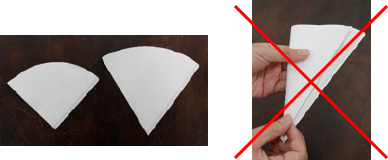

We do not recommend using regular cone-shaped paper filter folded in half!

When you fold two sheets of paper with a bottom angle of 60 degrees and set them in the DEEP27 dripper, the bottom angle of the folded paper becomes 30 degrees, which doesn't match the 27-degree angle of the dripper's shape. As a result, as shown on the bottom left photo, the paper will bulge and create waves. This mismatch in the shape of the paper and the dripper, along with the difference in the number of layers (one side being one layer and the other being three layers) caused by folding, leads to variations in water penetration speed, making it difficult to achieve uniform coffee extraction.

Cup 4 paper filter folded in half

1st layer part: The filter is wavy
3rd layer part: The filter is raised

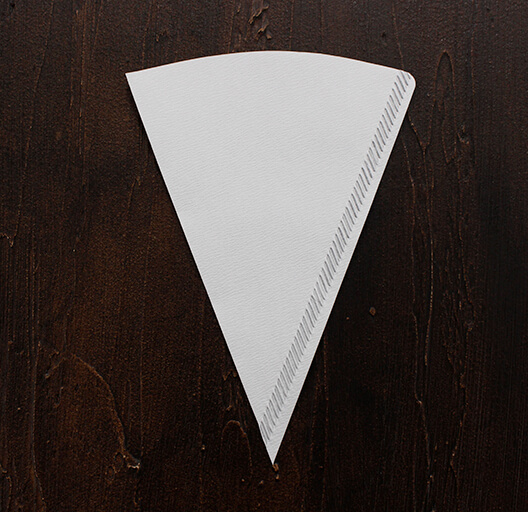

DEEP27 paper filter

The filter is evenly in contact with the entire circumference of the dripper.

Uneven extraction cannot bring out the full flavor of coffee beans. For the FLOWER DRIPPER DEEP 27, please use the dedicated Abaca+ DEEP27 paper filter.
